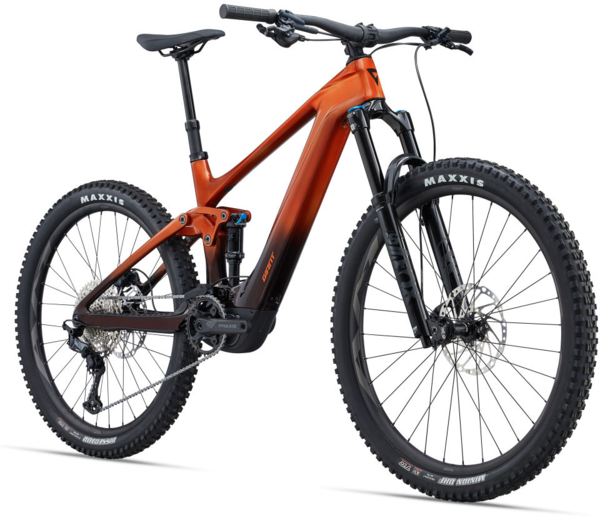

Giant Trance X Advanced E+ Elite 2

Giant Trance X Advanced E+ Elite 2
  • Color: Amber Glow/Cordovan
$7,000.00
Color: Amber Glow/Cordovan
Size: Medium
Please select options Unavailable
This item is not permitted to be shipped, however it can be purchased online and picked up at your convenience, or delivered to your home for an additional charge. Delivery up to 6 miles from our store is $10. Delivery 6-10 miles we charge $20. (You may determine this by using your phone's map's application and requesting directions to our store from the delivery address). We do not deliver beyond 10 miles at this time.

Details

Trance X Advanced E+ EL 2 20MPH XL Amber Glow/Cordovan

Sizes:
FRAMESmallMediumLargeX-Large
xLOW | HIGH LOW | HIGHLOW | HIGHLOW | HIGH
Seat Tube Length (inch)15.7 16.717.718.7
Seat Tube Angle77.2° | 78.0° 76.0° | 76.7°76.0° | 76.7°76.0° | 76.7°
Top Tube Length (inch)22.7 | 22.6 23.9 | 23.825 | 2526.2 | 26.1
Head Tube Length (inch)37 3.94.55.1
Head Tube Angle65.7° | 66.5° 65.8° | 66.5°65.8° | 66.5°65.8° | 66.5°
Fork Rake (inch)1.7 1.71.71.7
Trail (inch)4.4 | 4.3 4.4 | 4.34.4 | 4.34.4 | 4.3
Wheelbase (inch)47 | 47 47.8 | 47.749 | 4950.2 | 50.2
Chain Stay Length (inch)17.6 | 17.6 17.6 | 17.617.6 | 17.617.6 | 17.6
Bottom Bracket Drop (inch)0.4 0.40.40.4
Stack (inch)23.9 | 23.7 24.1 | 23.824.6 | 24.425.2 | 24.9
Reach (inch)173 | 17.6 18 | 18.218.9 | 19.219.9 | 20.2
Stand Over Height (inch)28.6 | 28.9 28.9 | 29.228.8 | 29.229.2 | 29.5
Handlebar Width (inch)30.7 30.730.730.7
Stem Length (inch)1.6 1.622
Crank Length (inch)6.3 6.56.56.7
Wheel SizeR27.5"/ F29" R27.5"/ F29"R27.5"/ F29"R27.5" / F29"
Sizes:
SizeHeight (cm)Height (in)
Small 163 - 174cm 5'4" - 5'9"
Medium 171 - 182cm 5'7" - 6'0"
Large 176 - 186cm 5'9" - 6'1"
X-Large 183 - 193cm 6'0" - 6'4"

Specs

Frame Advanced-grade composite frame, Advanced-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system
Fork Fox 36 Float Performance, 150mm travel, 44mm offset, Grip 3-position Micro Adjust damper, Boost 110x15QR
Rear Shock Fox DPS Performance, EVOL Large Volume sleeve, 3-position Lever, 185x52.5mm Trunnion mount, custom tuned
Rims Giant AM 29" [F]/ 27.5" [R], Tubeless ready, 30mm inner width, e-bike optimized
Hubs Shimano MT410, Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro Spline Drive Body Thru-axle
Spokes Sapim E-Lite [R] Race [F], e-bike optimized
Tires Maxxis Minion DHF 29X2.50" Foldable, TLR, EXO [F]Maxxis Dissector 27.5x2.4" Foldable, TLR, EXO [R]
Bottom Bracket n/a
Crankset Praxis e-Cadet+ custom forged crankarm set (S:160, M/L: 165, XL:170)
Chainrings Praxis Wavetm 36T Cold Forged 4130 premium steel
Shifters Shimano Deore SLX
Front Derailleur MRP HD2 co-moulded chain guide
Rear Derailleur Shimano Deore SLX, 12-speed, Shadow+
Cassette/Freewheel Shimano HG-M6100, 10-51T, 12-speed
Chain KMC e.12 Sport, NP/NP, e-bike optimized
Brakes Shimano SLX BR-M7120, 4-piston, hydraulic disc, 203mm
Brake Levers Shimano SLX, I-spec EV
Handlebars Giant Contact SL 35 Trail, 35x780mm
Tape/Grips Giant Tactal Pro-E, single lock-on
Stem Giant Contact SL 35
Seatpost Giant Contact Switch, dropper, 30,9mm (S:125/M:150/ L&XL:170)
Saddle Giant Romero, Neutral
Pedals Sold separately
Accessories & Extras Tubeless kit (liquid, valves, levers, manual, tool)Inner tube supplied
Motor SyncDrive Pro, 85Nm, powered by Yamah
Battery EnergyPak Smart 400,EnergyPak Plus range extender compatible
Controller/Display RideControl GO integrated in TT, RideControl Ergo 3, ANT+ cycle computer compatible

* Subject to change without notice.

Part Numbers

Option UPC MPN
Amber Glow/Cordovan / Medium 4712878865457 2303335105
