The Crux 5 is the fastest gravel race bike, delivering the lowest real-world Time to Finish with aerodynamic performance and telepathic handling.
The Crux 5 is the fastest gravel race bike, delivering the lowest real-world Time to Finish with aerodynamic performance and telepathic handling.
Specialized

Specialized Crux 5 Expert SRAM Force XPLR in Burnt Gold/Dolomite/Ob

$7,000.00
Earn
in Customer Rewards when you buy this item today
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined

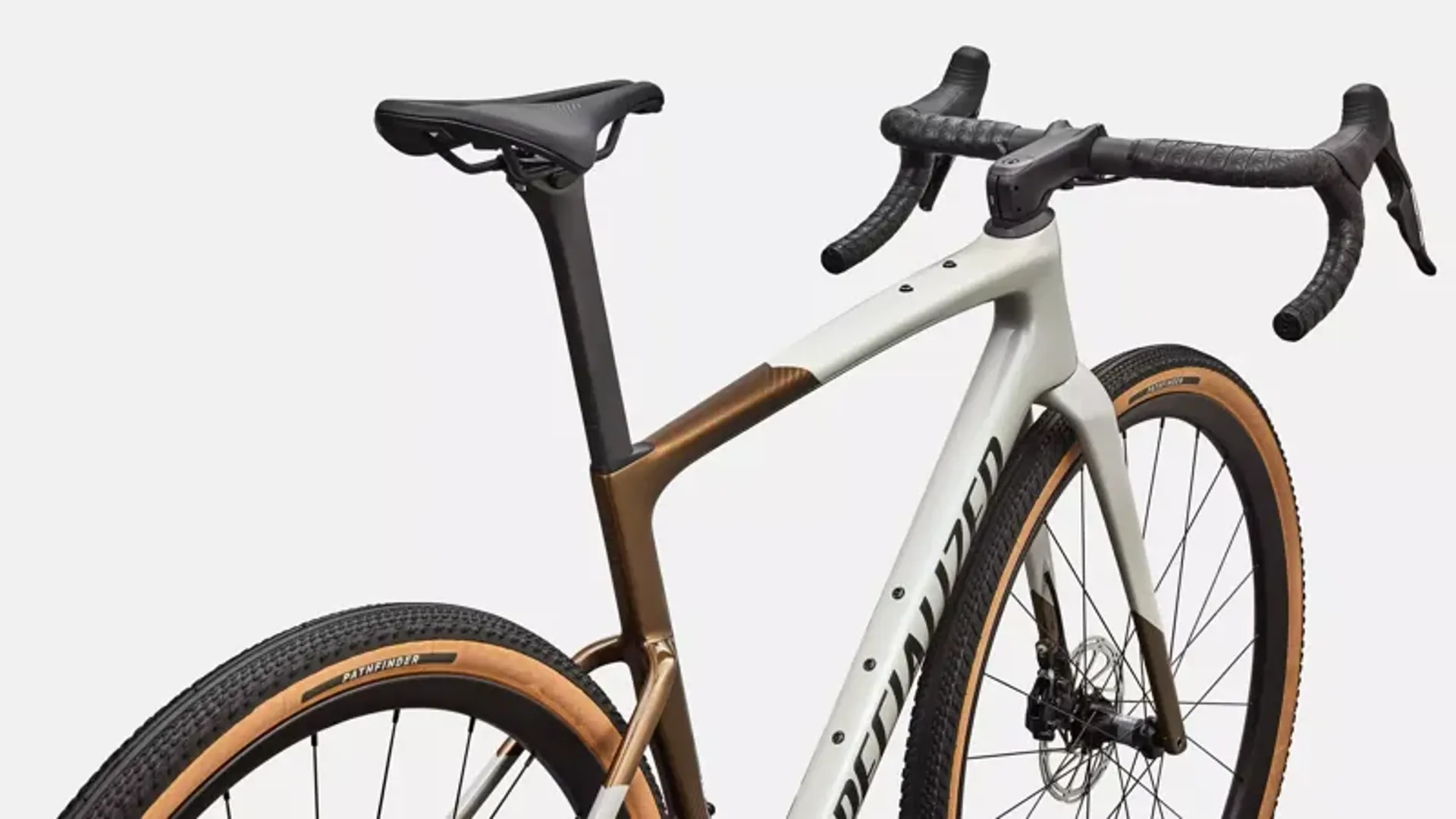

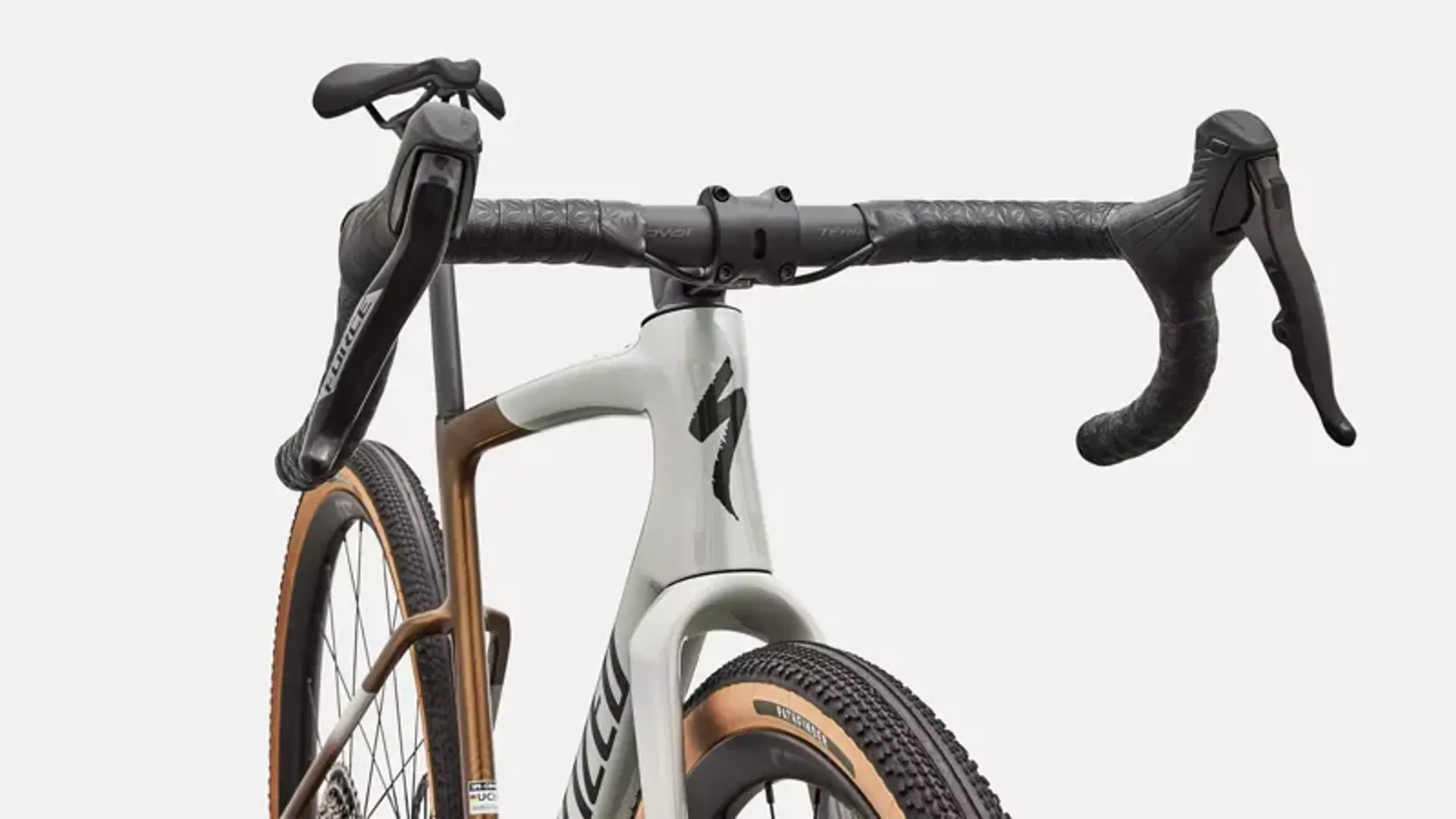

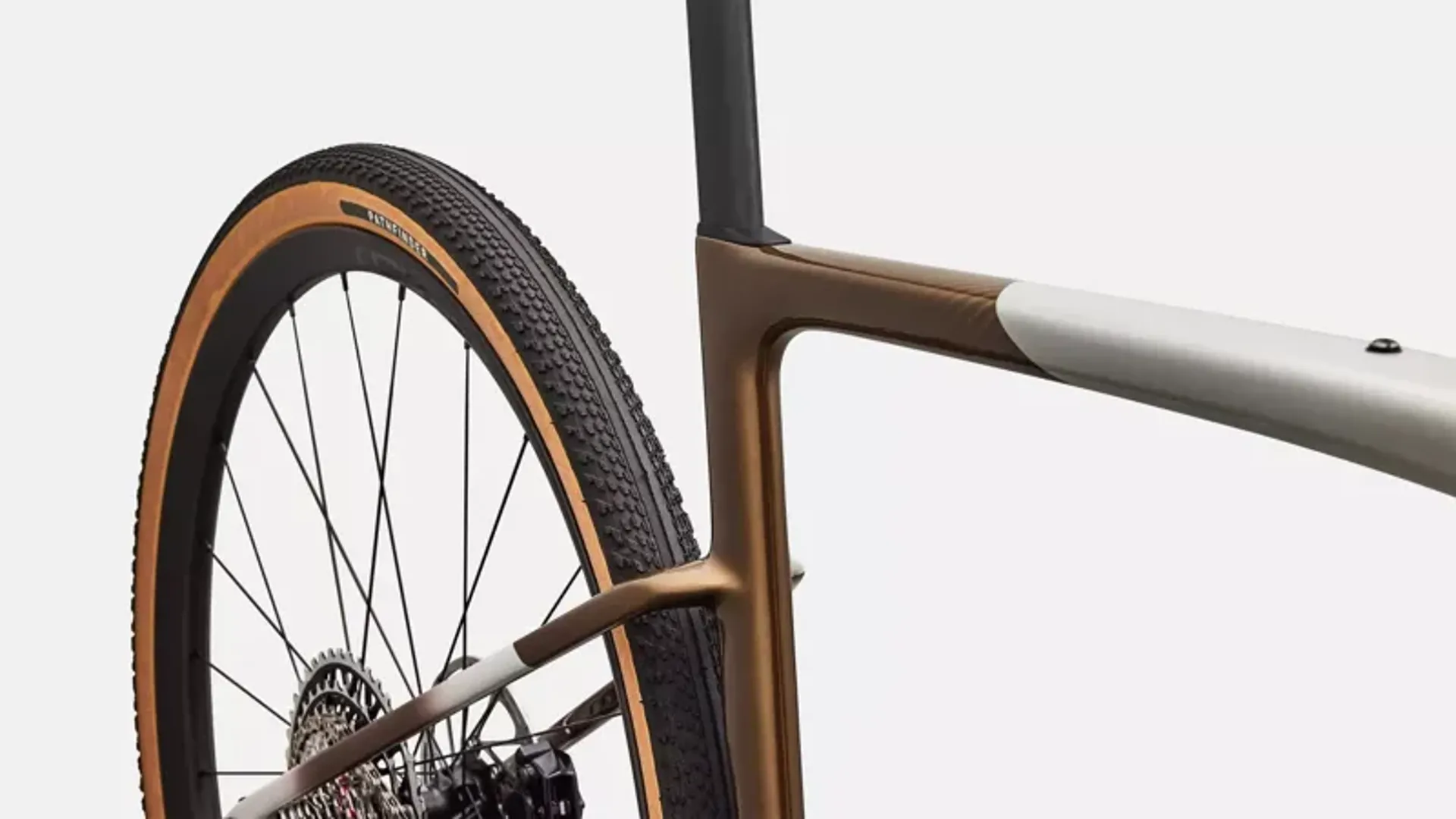

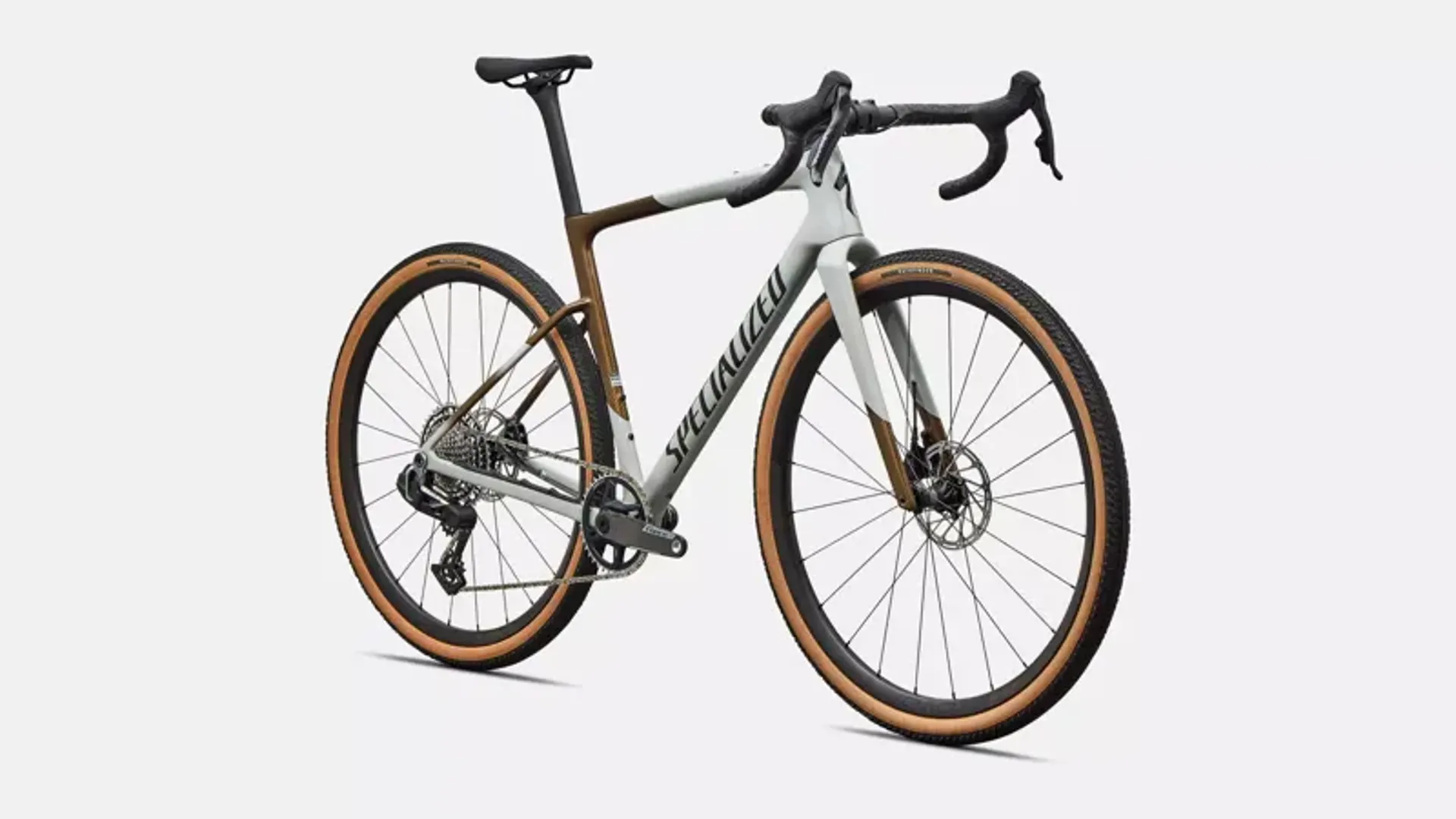

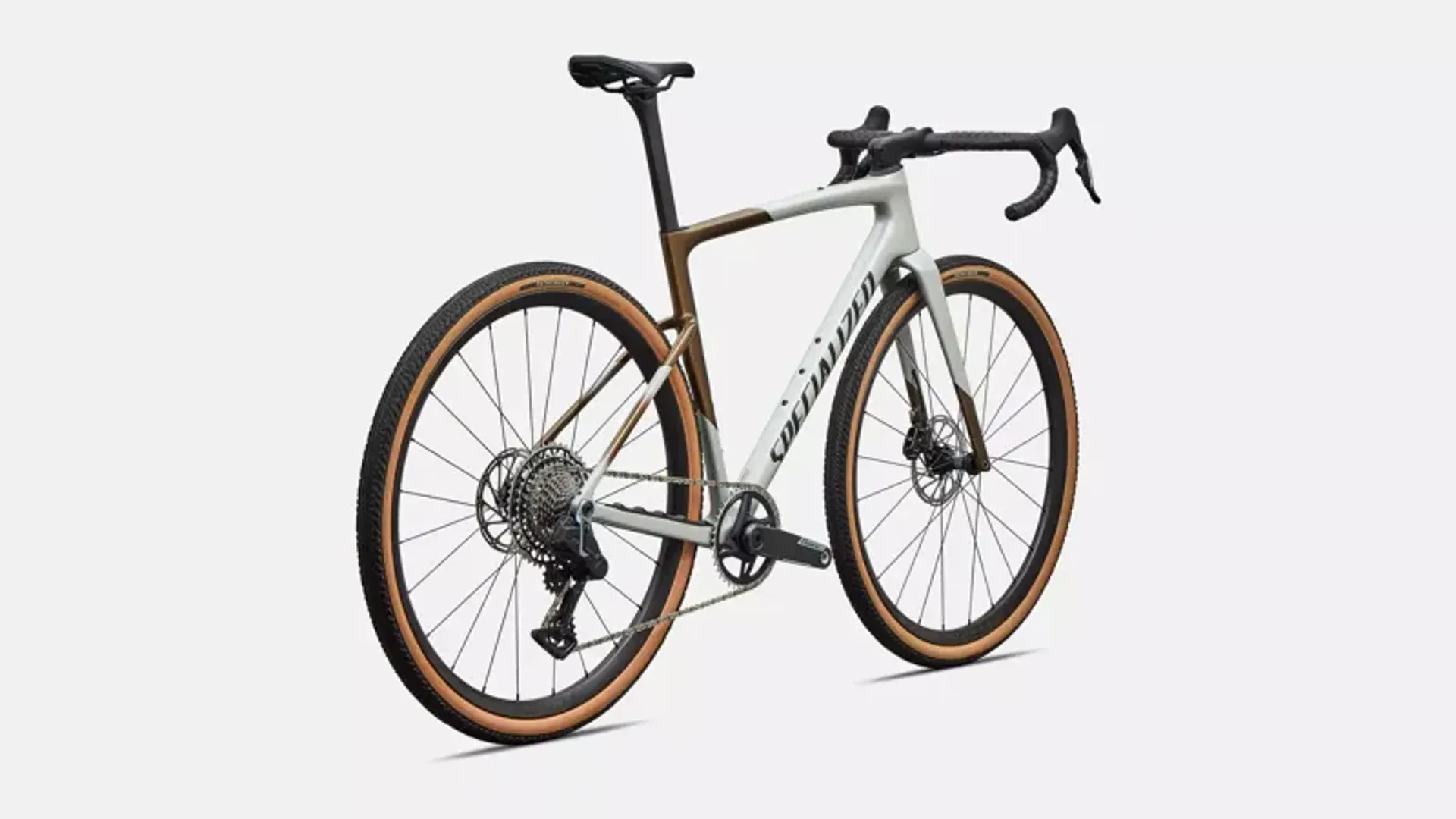

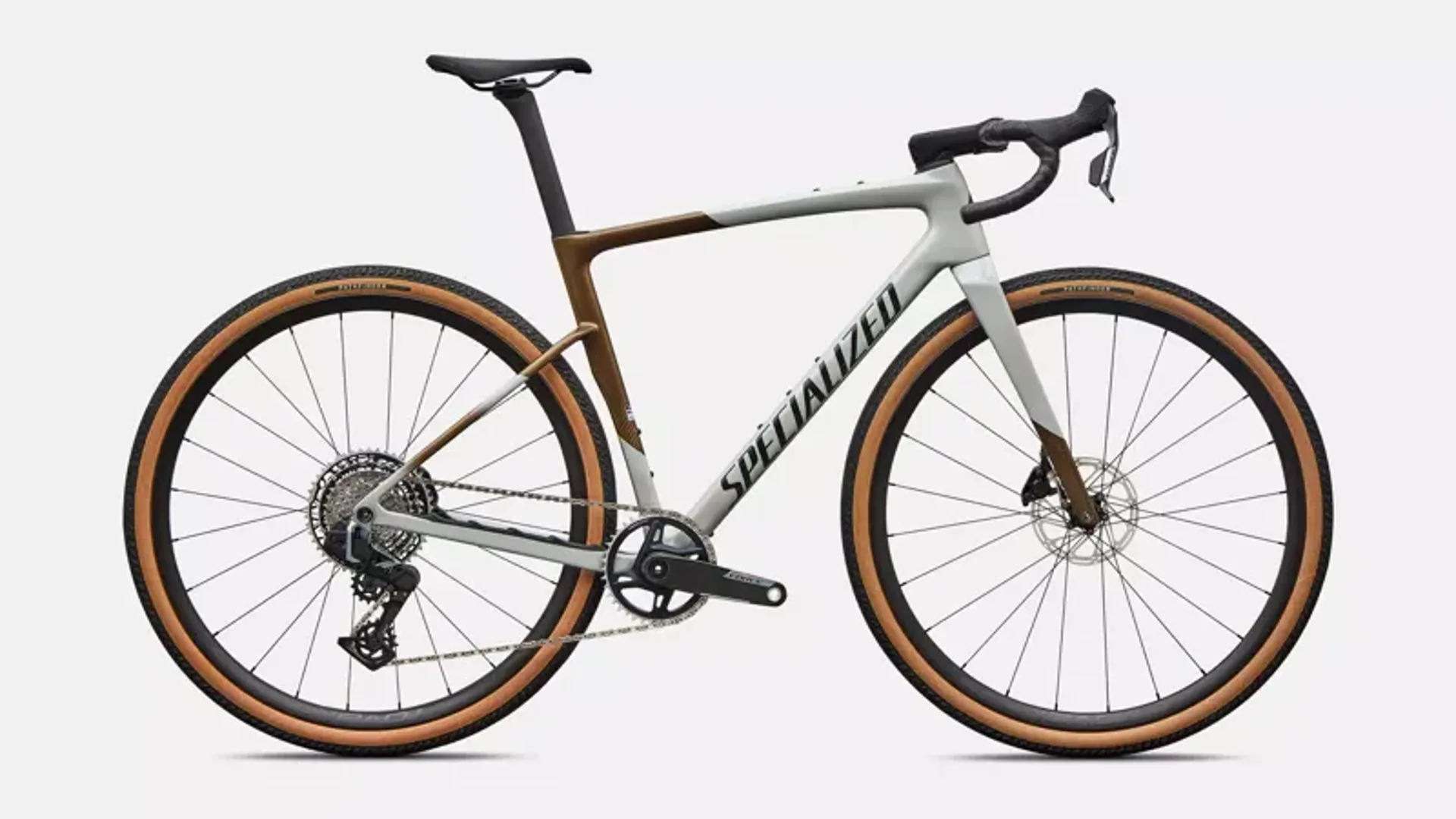

Specialized Crux 5 Expert SRAM Force XPLR in Burnt Gold/Dolomite/Ob

Season:2027

Brand:Specialized

Code:42948305469837

The Crux 5 was born from the fastest gravel race bike ever made, delivering the lowest real-world Time to Finish of any gravel bike.

The Crux 5 turns effort into pure speed, validated across real race courses, real terrain, and real riders. When the goal is the top step, nothing in gravel gets you there faster. The Crux 5 is the most aerodynamic gravel race bike Specialized has ever made. Drawing directly from Tarmac SL8 learnings and decades of aero research, every tube on the Crux 5 was sculpted for speed at elite gravel race speeds.

Speed is about sustaining power and momentum deep into the race. The Crux 5 delivers telepathic handling, instantaneous acceleration, and balanced compliance that reduces fatigue on the roughest courses. Rider First Engineered and now with 55mm tire clearance for unmatched traction and comfort, it preserves the legendary ride feel of the Crux 4 while adding real aerodynamic performance.

Features:

  • Use: Gravel Racing
  • Frame: FACT 10r Carbon (897 grams)
  • Wheels: Roval Terra C III
  • Bar and Stem: Roval Terra Handlebar and Rapide Stem
  • Drivetrain: SRAM Force AXS XPLR
  • Weight: 8.22 kg
Technical Information
  • Frame
    Crux 5 FACT 10r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disk, UDH dropout
  • Fork
    S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disk
  • Brakes
    SRAM Force E1, hydraulic disk
  • Shift Levers
    SRAM Force AXS E1, hydraulic disk
  • Rear Derailleur
    SRAM Force AXS E1 XPLR, 13-speed
  • Cassette
    SRAM Force E1 XPLR, 13-speed, 10-46t
  • Chain
    SRAM Force Flattop E1
  • Crankset
    SRAM Force E1 XPLR, DUB Wide, 40t
  • Bottom Bracket
    SRAM DUB BSA 68 Wide
  • Tires
    Pathfinder 700x45, Tubeless Ready
  • Wheels
    Roval Terra C III, 27mm inner width carbon rim, tubeless ready, 25.5mm depth, DT 370 hub, 24h, Sapim D-Light spokes
  • Inner Tubes
    700x32-50mm, 40mm Presta valve
  • Stem
    Roval Rapide, alloy, 4 bolt, -6 degrees
  • Handlebars
    Roval Terra, carbon, 103mm drop x 70mm reach x 12º flare
  • Tape
    Supacaz Super Sticky Kush
  • Saddle
    Body Geometry Power Expert
  • Seatpost
    S-Works Tarmac SL8 Carbon seat post, FACT Carbon, 15mm offset
  • Seat Binder
    Integrated Wedge
  • Tire Clearance
    55mm
  • Weight
    8.22 kg (18 lb, 2.0 oz)
  • Size
    49
    52
    54
    56
    58
    61
  • Crank Length
    165mm
    165mm
    170mm
    170mm
    172.5mm
    172.5mm
  • Handlebar Width
    380mm
    380mm
    400mm
    400mm
    420mm
    420mm
  • Stem Length
    70mm
    80mm
    90mm
    100mm
    100mm
    100mm
  • Saddle Width
    155mm
    155mm
    143mm
    143mm
    143mm
    143mm
  • Seatpost Length
    300mm
    300mm
    380mm
    380mm
    380mm
    380mm
  • Stack
    530mm
    547mm
    560mm
    578mm
    598mm
    621mm
  • Reach
    375mm
    382mm
    388mm
    400mm
    412mm
    425mm
  • Head Tube Length
    95mm
    110mm
    125mm
    142mm
    163mm
    188mm
  • Head Tube Angle
    70.5°
    70.75°
    71°
    71.5°
    71.5°
    71.5°
  • BB Height
    278mm
    278mm
    280mm
    280mm
    280mm
    280mm
  • BB Drop
    80mm
    80mm
    78mm
    78mm
    78mm
    78mm
  • Trail
    72mm
    71mm
    69mm
    66mm
    66mm
    66mm
  • Fork Length, Full
    401mm
    401mm
    401mm
    401mm
    401mm
    401mm
  • Fork Rake/Offset
    51mm
    51mm
    51mm
    51mm
    51mm
    51mm
  • Front Center
    594mm
    604mm
    613mm
    626mm
    644mm
    665mm
  • Chainstay Length
    425mm
    425mm
    425mm
    425mm
    425mm
    425mm
  • Wheelbase
    1008mm
    1016mm
    1026mm
    1039mm
    1057mm
    1078mm
  • Top Tube Length, Horizontal
    512mm
    534mm
    543mm
    566mm
    583mm
    603mm
  • Bike Standover Height
    753mm
    766mm
    781mm
    803mm
    823mm
    849mm
  • Seat Tube Length
    445mm
    456mm
    473mm
    497mm
    515mm
    545mm
  • Seat Tube Angle
    75.5°
    74.5°
    74.5°
    74°
    74°
    74°
Sizing Information
