The S-Works Diverge STR features FACT 11r carbon frames with front and rear Future Shock suspension, delivering 20mm front and 30mm rear travel.
The S-Works Diverge STR features FACT 11r carbon frames with front and rear Future Shock suspension, delivering 20mm front and 30mm rear travel.
Specialized

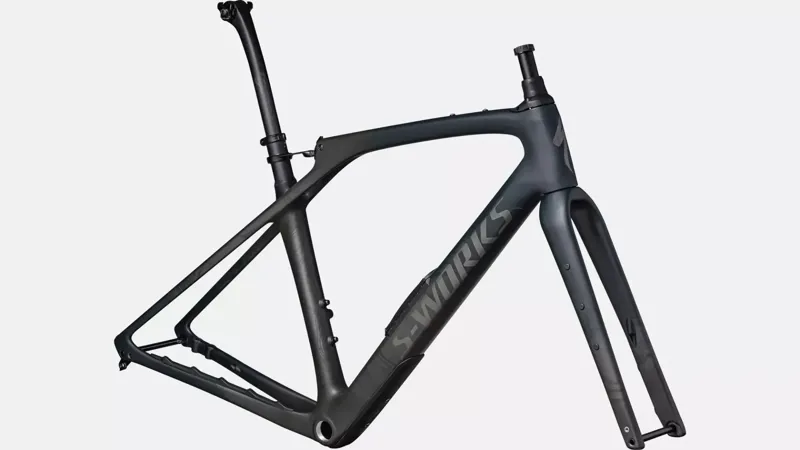

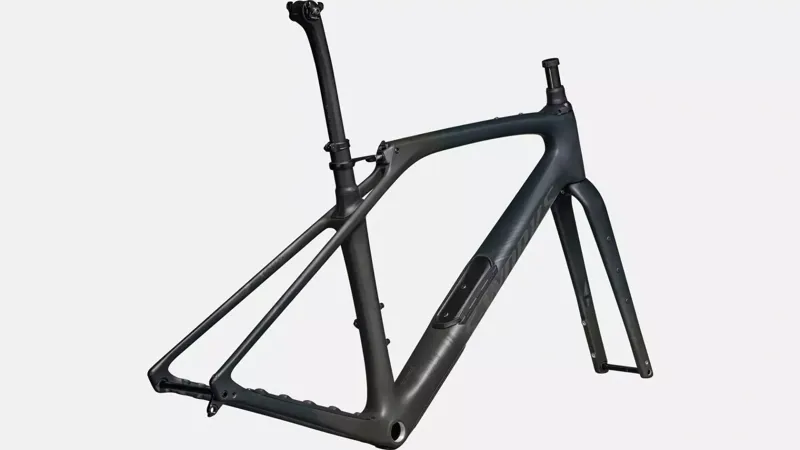

Specialized S-Works Diverge STR Carbon Frameset 58 - Grey

$5,500.00
Earn
in Customer Rewards when you buy this item today
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined

Specialized S-Works Diverge STR Carbon Frameset 58 - Grey

Season:Perennial

Brand:Specialized

Code:76226-0158

With Future Shock suspension front and rear, the new Diverge STR delivers compliance without compromise.

By suspending the rider instead of the bike, Future Shock technology increases control and efficiency while decreasing fatigue, allowing for riding farther and faster over chunkier terrain. The S-Works Diverge STR features a FACT 11r carbon frameset with front and rear Future Shock suspension, providing 20mm of front travel and 30mm of rear travel. This system absorbs bump forces to boost control and capability while retaining the efficiency and responsiveness of a rigid frame. The hydraulic damping in the rear controls travel to eliminate bobbing under power and ensures big hits do not compromise fit or pedaling efficiency. This frame is more compliant than previous drop bar bikes while adding only 100 grams compared to the S-Works Diverge frame.

Features:

  • Future Shock technology with 20mm front and 30mm rear damped, tunable travel.
  • Tire clearance of 47mm on a 700c wheel and 2.1" (5.3cm) on 650B.
  • Internal SWAT compartment for storage.
  • Hydraulic damping for on-the-fly adjustability.
  • Dropper post compatible.
  • Reduces rider vibration by 20% and rolling resistance for increased speed on rough terrain.
Technical Information
  • Frame
    S-Works Diverge FACT 11r carbon, front and rear Future Shock suspension, SWAT door integration, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc
  • Fork
    Future Shock 2.0 w/ Damper, Smooth Boot, FACT carbon, 12x100 mm thru-axle, flat-mount
  • Seatpost
    S-Works Carbon, 20mm offset
  • Seat binder
    Specialized Alloy, 33.3mm
  • Suspension travel
    20mm front / 30mm rear
  • Tire clearance
    47mm (700c), 2.1" (650B)
  • Weight
    2.85kg (size 56)
  • Size
    Seatpost Length
    BB Height
    Reach
    Stack
    Wheelbase
  • 49
    350mm
    270mm
    365mm
    569mm
    1023mm
  • 52
    350mm
    265mm
    374mm
    576mm
    1027mm
  • 54
    350mm
    265mm
    383mm
    593mm
    1034mm
  • 56
    350mm
    265mm
    392mm
    609mm
    1044mm
  • 58
    350mm
    265mm
    401mm
    633mm
    1060mm
  • 61
    350mm
    265mm
    410mm
    659mm
    1078mm
Sizing Information
Geometry 49 52 54 56 58 61
Seatpost Length 350mm 350mm 350mm 350mm 350mm 350mm
BB Height 270mm 265mm 265mm 265mm 265mm 265mm
Seat Tube Angle 74.5° 74.25° 74° 74° 74° 74°
Fork Length, Full 390mm 390mm 390mm 390mm 390mm 390mm
Reach 365mm 374mm 383mm 392mm 401mm 410mm
Seat Tube Length 390mm 430mm 470mm 500mm 530mm 560mm
Stack 569mm 576mm 593mm 609mm 633mm 659mm
Wheelbase 1023mm 1027mm 1034mm 1044mm 1060mm 1078mm
Top Tube Length, Horizontal 527mm 556mm 570mm 586mm 602mm 540mm
Trail 69mm 66mm 61mm 57mm 57mm 57mm
Bike Standover Height 704mm 730mm 753mm 778mm 804mm 833mm
Head Tube Angle 70° 70.5° 71.25° 71.75° 71.75° 71.75°
Fork Rake/Offset 55mm 55mm 55mm 55mm 55mm 55mm
Head Tube Length 100mm 100mm 115mm 130mm 155mm 182mm
BB Drop 80mm 85mm 85mm 85mm 85mm 85mm
Front Center 607mm 612mm 619mm 629mm 645mm 663mm
Chainstay Length 429mm 429mm 429mm 429mm 429mm 429mm
