Virtually indestructible and stunning on nearly any type of bike. They’re as light as carbon cranks but offer significantly more durability and impact resistance.
Virtually indestructible and stunning on nearly any type of bike. They’re as light as carbon cranks but offer significantly more durability and impact resistance.
Cane Creek

Cane Creek eeWings Ti Cranks 170mm 8-Bolt 30mm Spindle in Silver

$1,249.99
Earn
in Customer Rewards when you buy this item today
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined

Cane Creek eeWings Ti Cranks 170mm 8-Bolt 30mm Spindle in Silver

Season:2025

Brand:Cane Creek

Code:CK1665

Virtually indestructible and stunning on nearly any type of bike - from gravel race machine, to heavy-hitting bike park rig, to the undetermined bike you’ll build 10 years from now. They’re as light as carbon cranks but offer significantly more durability and impact resistance – not to mention industry-leading power transfer. Now with 8-bolt chainring and power meter compatibility, an ultra-friendly 8mm fixing bolt, and more ground clearance. When others separate, bend, break, or simply fade – eeWings are Ageless.

The small details are often the ones that make the biggest difference. These eeWings come with a fully machined, 7000 series aluminum preloader for precisely setting the preload on your bottom bracket bearings and ensuring a perfect fit with your frame.

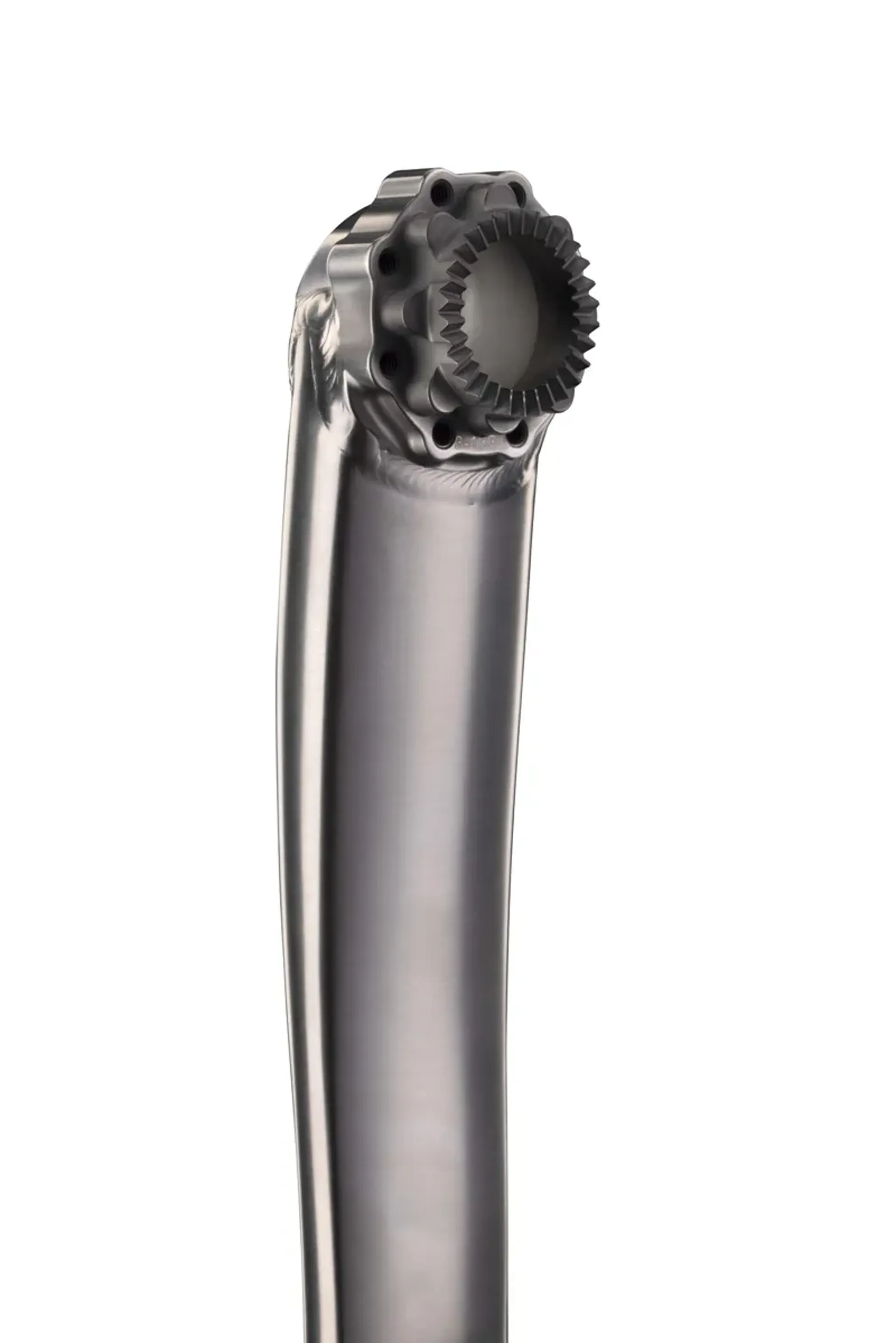

Compact and lightweight, the Hirth Joint minimizes overlapping and redundant material yet maintains incredible torsional rigidity with very few parts. It promotes the most direct power transfer possible and is precision machined from 6/4 titanium, secured with a single, oversized stainless steel fixing bolt.

Features:

  • Titanium arms and spindle are the ultimate in stiffness and durability
  • Designed to handle the rigorous demands of aggressive trail and enduro riders
  • Compatible with 8-bolt SRAM direct mount chainring options (not included) with 8mm fixing bolt
  • Can be used on gravel 47mm chainlines with appropriate spindle spacers
  • CNC machined 7075 T-6 aluminum bottom bracket preloader
  • Bottom bracket not included, use DC91*
  • 398g (170mm)
  • Titanium pinch bolt - 2.5mm head for confident, secure adjustment
Technical Information
  • Weight
    398g (AR, 165mm)
  • Materials
    Butted 3/2.5 titanium arms with CNC 6/4 titanium spindle and Hirth joint
  • Hardware
    Stainless steel 8mm crank fixing bolt and chainring bolts
  • Lengths
    MTN: 160mm, 165mm, 170mm | AR: 165mm, 170mm, 172.5mm
  • Q Factor
    MTN: 176mm | AR: 160mm
  • Preload Adjustment
    Cane Creek CNC machined 7075 T-6 aluminum preloader
  • Spindle
    30MM
  • Chainring Interface
    Sram 8-bolt - supports Transmission chainrings and Sram power meters. Compatible with Shimano GRX using Cane Creek GRX Spider.
  • Part #s
    BAI0315 - MTN 160mm BAI0312 - AR 165mm BAI0316 - MTN 165mm BAI0313 - AR 170mm BAI0317 - MTN 170mm BAI0314 - AR 172.5mm
